PlotWidget Class Reference

#include <PlotWidget.h>

Inheritance diagram for PlotWidget:
Inheritance graph
[legend]

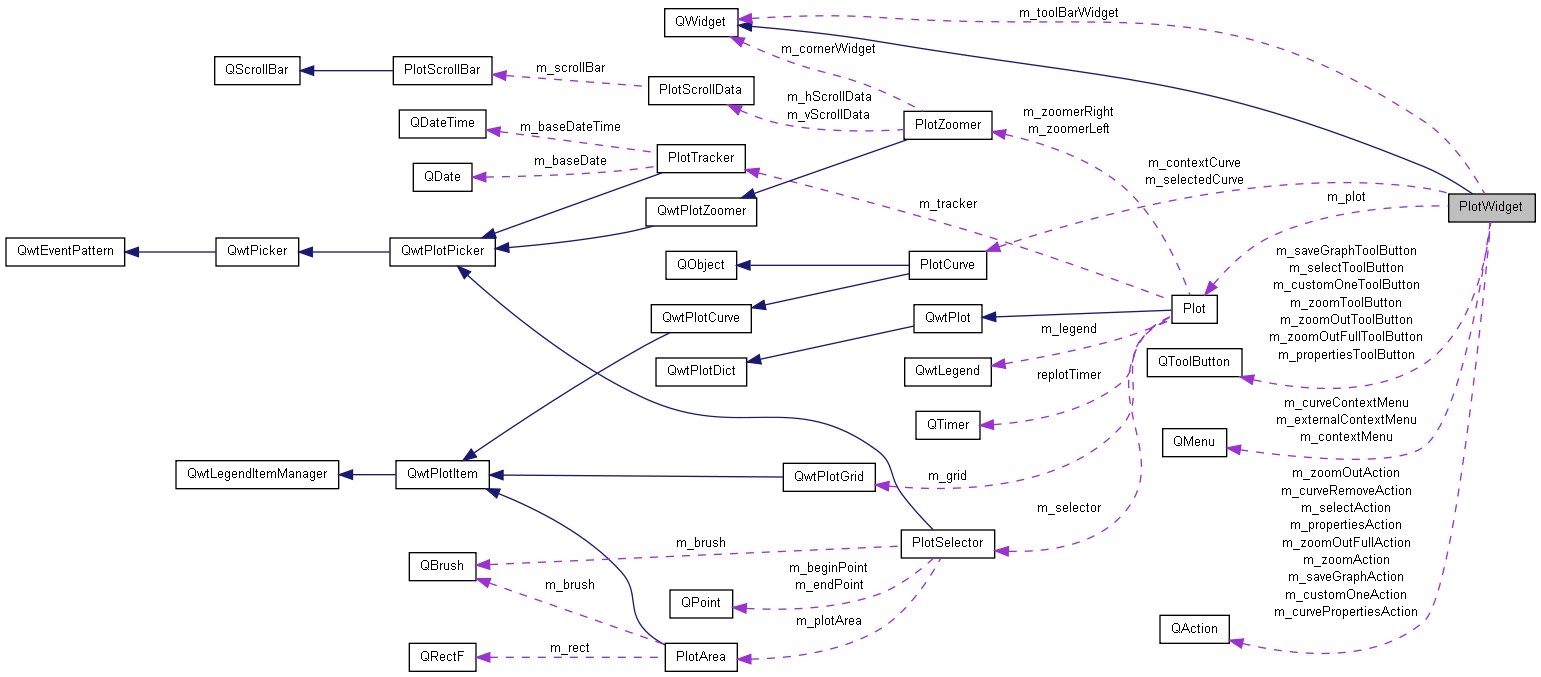

Collaboration diagram for PlotWidget:
Collaboration graph
[legend]

List of all members.

Signals

void curvePropertiesTriggered (PlotCurve *curve)
void curveRemoveTriggered (PlotCurve *curve)

Public Member Functions

 PlotWidget (QWidget *parent=0)
 ~PlotWidget ()
Plot * plot ()
void enableToolBar (bool flag)
bool isToolBarEnabled ()
void enableProperties (bool flag)
bool isPropertiesEnabled ()
QAction * propertiesAction ()
void enableZoom (bool flag)
bool isZoomEnabled ()
void enableSelect (bool flag)
bool isSelectEnabled ()
QAction * selectAction ()
void enableCustomOne (bool flag)
bool isCustomOneEnabled ()
QAction * customOneAction ()
void enableContextMenu (bool flag)
bool isContextMenuEnabled ()
QMenu * defaultContextMenu ()
void setContextMenu (QMenu *menu)
void enableCurveContextMenu (bool flag)
bool isCurveContextMenuEnabled ()
void enableCurveSelection (bool flag)
bool isCurveSelectionEnabled ()
void setToolBarIconSize (QSize size)
void setAxisLinear (QwtPlot::Axis axis)
void setAxisLogarithmic (QwtPlot::Axis axis)
void setAxisDate (QwtPlot::Axis axis, QDate baseDate=QDate())
void setAxisDateTime (QwtPlot::Axis axis, QDateTime baseDateTime=QDateTime())

Protected Member Functions

void showEvent (QShowEvent *event)

Constructor & Destructor Documentation

PlotWidget::PlotWidget ( QWidget *  parent = 0  )

  : QWidget( parent )
{
  //qDebug( "PlotWidget::PlotWidget" );

  // Tool button layout
  m_toolBarEnabled = true;
  m_toolBarWidget = new QWidget();
  QVBoxLayout* toolButtonLayout = new QVBoxLayout;
  toolButtonLayout->setContentsMargins( 0, 0, 0, 0 );
  m_toolBarWidget->setLayout( toolButtonLayout );

  // Properties
  m_propertiesEnabled = true;
  m_propertiesAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/Properties.png" ) ),
                                           "Properties", this );
  connect( m_propertiesAction, SIGNAL( triggered( bool ) ), this, SLOT( propertiesTriggered() ) );
  m_propertiesToolButton = new QToolButton;
  m_propertiesToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_propertiesToolButton->setDefaultAction( m_propertiesAction );
  toolButtonLayout->addWidget( m_propertiesToolButton );

  // Zoom
  m_zoomEnabled = true;
  m_zoomAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/Zoom.png" ) ),
                                     "Zoom", this );
  m_zoomAction->setCheckable( true );
  m_zoomAction->setChecked( true );
  connect( m_zoomAction, SIGNAL( triggered( bool ) ), this, SLOT( zoomTriggered( bool ) ) );
  m_zoomToolButton = new QToolButton;
  m_zoomToolButton->setToolTip( "Toggle zoom" );
  m_zoomToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_zoomToolButton->setDefaultAction( m_zoomAction );
  toolButtonLayout->addWidget( m_zoomToolButton );

  // Select
  m_selectEnabled = true;
  m_selectAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/Select.png" ) ),
                                "Select", this );
  m_selectAction->setCheckable( true );
  m_selectAction->setChecked( false );
  connect( m_selectAction, SIGNAL( triggered( bool ) ), this, SLOT( selectTriggered( bool ) ) );
  m_selectToolButton = new QToolButton;
  m_selectToolButton->setToolTip( "Toggle zoom" );
  m_selectToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_selectToolButton->setDefaultAction( m_selectAction );
  toolButtonLayout->addWidget( m_selectToolButton );

  // Zoom out
  m_zoomOutAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/ZoomOut.png" ) ),
                                        "Zoom out", this );
  connect( m_zoomOutAction, SIGNAL( triggered( bool ) ), this, SLOT( zoomOutTriggered( bool ) ) );
  m_zoomOutToolButton = new QToolButton;
  m_zoomOutToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_zoomOutToolButton->setDefaultAction( m_zoomOutAction );
  toolButtonLayout->addWidget( m_zoomOutToolButton );

  // Zoom out full
  m_zoomOutFullAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/ZoomOutFull.png" ) ),
                                        "Zoom out full", this );
  connect( m_zoomOutFullAction, SIGNAL( triggered( bool ) ), this, SLOT( zoomOutFullTriggered( bool ) ) );
  m_zoomOutFullToolButton = new QToolButton;
  m_zoomOutFullToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_zoomOutFullToolButton->setDefaultAction( m_zoomOutFullAction );
  toolButtonLayout->addWidget( m_zoomOutFullToolButton );

  // Save graph
  m_saveGraphAction = new QAction("Save", this);
  connect(m_saveGraphAction, SIGNAL(triggered()), this, SLOT(saveGraph()));
  m_saveGraphToolButton = new QToolButton;
  m_saveGraphToolButton->setDefaultAction(m_saveGraphAction);
  toolButtonLayout->addWidget(m_saveGraphToolButton);

  // Custom One
  m_customOneEnabled = false;
  m_customOneAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/Properties.png" ) ),
                                   "Custom 1", this );
  m_customOneAction->setCheckable( false );
  m_customOneToolButton = new QToolButton;
  m_customOneToolButton->setToolTip( "Custom 1" );
  m_customOneToolButton->setToolButtonStyle( Qt::ToolButtonIconOnly );
  m_customOneToolButton->setDefaultAction( m_customOneAction );
  m_customOneToolButton->setVisible( false );
  toolButtonLayout->addWidget( m_customOneToolButton );

  toolButtonLayout->insertStretch( -1 );

  // Plot
  m_plot = new Plot;
  // TODO: Ugly hack to avoid that part of the axis label gets chopped off
  // If we add a very small axis title it doesn't happen

  //m_plot->setAxisTitle( QwtPlot::yLeft, "Y1" );
  m_plot->enableAxis(QwtPlot::yRight);
  //m_plot->setAxisTitle( QwtPlot::yRight, "Y2" );
  connect(m_plot, SIGNAL(signal_curveAttached(PlotCurve*)),
          this, SLOT(zoomOutFullTriggered()));

  // Main layout
  QHBoxLayout* layout = new QHBoxLayout;
  layout->setContentsMargins( 0, 0, 0, 0 );
  layout->addWidget( m_toolBarWidget );
  layout->addWidget( m_plot );
  setLayout( layout );

  // Context menu
  m_contextMenuEnabled = true;
  m_externalContextMenu = NULL;
  m_contextMenu = NULL;
  connect( m_plot, SIGNAL( customContextMenuRequested( const QPoint& ) ),
           this, SLOT( contextMenuRequested( const QPoint& ) ) );

  // Curve context menu
  m_curveContextMenu = NULL;
  connect( m_plot, SIGNAL( curveContextMenuRequested( const QPoint&, PlotCurve* ) ),
           this, SLOT( curveContextMenuRequested( const QPoint&, PlotCurve* ) ) );
  m_curveContextMenuEnabled = false;
  m_contextCurve = NULL;
  m_curvePropertiesAction = new QAction( QIcon( QPixmap( ":/PhytoLib/icons/Plot/32x32/Properties.png" ) ),
                                         "Properties", this );
  connect( m_curvePropertiesAction, SIGNAL( triggered( bool ) ),
           this, SLOT( curvePropertiesTriggered() ) );
  m_curveRemoveAction = new QAction( "Remove", this );
  connect( m_curveRemoveAction, SIGNAL( triggered( bool ) ),
           this, SLOT( curveRemoveTriggered() ) );

  // Canvas context menu
  connect( m_plot->canvas(), SIGNAL( customContextMenuRequested( const QPoint& ) ),
           this, SLOT( canvasContextMenuRequested( const QPoint& ) ) );

  // Curve selection
  m_curveSelectionEnabled = false;
  m_selectedCurve = NULL;
  connect( m_plot, SIGNAL( canvasMousePressed( const QPoint& ) ),
           this, SLOT( canvasMousePressed( const QPoint& ) ) );
  connect( m_plot, SIGNAL( mouseMoved() ),
           this, SLOT( mouseMoved() ) );
  connect( m_plot, SIGNAL( deleteKeyPressed() ),
           this, SLOT( deleteKeyPressed() ) );

  zoomTriggered( true );
}

PlotWidget::~PlotWidget (  )

{
  //qDebug( "PlotWidget::~PlotWidget" );
}

Member Function Documentation

void PlotWidget::curvePropertiesTriggered ( PlotCurve *  curve  )  [signal]

Referenced by PlotWidget().

void PlotWidget::curveRemoveTriggered ( PlotCurve *  curve  )  [signal]

Referenced by PlotWidget().

QAction* PlotWidget::customOneAction (  )  [inline]

{ return m_customOneAction; }

QMenu* PlotWidget::defaultContextMenu (  )  [inline]

{ return m_contextMenu; }

void PlotWidget::enableContextMenu ( bool  flag  )  [inline]

{ m_contextMenuEnabled = flag; }

void PlotWidget::enableCurveContextMenu ( bool  flag  )  [inline]

{ m_curveContextMenuEnabled = flag; }

void PlotWidget::enableCurveSelection ( bool  flag  )  [inline]

{ m_curveSelectionEnabled = flag; };

void PlotWidget::enableCustomOne ( bool  flag  )

{
  //qDebug( "PlotWidget::enableCustomOne" );

  m_customOneEnabled = flag;
  m_customOneToolButton->setVisible( flag );
}

void PlotWidget::enableProperties ( bool  flag  )

{
  //qDebug( "PlotWidget::enableProperties" );

  m_propertiesEnabled = flag;
  m_propertiesToolButton->setVisible( flag );
}

void PlotWidget::enableSelect ( bool  flag  )

Referenced by Grapher::Grapher().

{
  //qDebug( "PlotWidget::enableSelect" );

  m_selectEnabled = flag;
  m_selectToolButton->setVisible( flag );

  // Handle the case where both modes are disabled
  if ( m_zoomEnabled == false && m_selectEnabled == false )
  {
    // Set the default arrow cursor, depending on what is enabled another cursor will be set
    m_plot->canvas()->setCursor( Qt::ArrowCursor );
    // Disable the zoomers
    if ( m_plot->zoomerLeft() == NULL ) return;
    m_plot->zoomerLeft()->setEnabled( false );
    if ( m_plot->zoomerRight() == NULL ) return;
    m_plot->zoomerRight()->setEnabled( false );
    // Disable the selector
    if ( m_plot->selector() == NULL ) return;
    m_plot->selector()->setEnabled( false );
  }

  zoomTriggered( m_zoomEnabled );
  selectTriggered( m_selectEnabled );
}

void PlotWidget::enableToolBar ( bool  flag  )

{
  //qDebug( "PlotWidget::setToolBarEnabled" );

  m_toolBarEnabled = flag;
  m_toolBarWidget->setVisible( flag );
}

void PlotWidget::enableZoom ( bool  flag  )

{
  //qDebug( "PlotWidget::enableZoom" );

  m_zoomEnabled = flag;
  m_zoomToolButton->setVisible( flag );
  m_zoomOutToolButton->setVisible( flag );
  m_zoomOutFullToolButton->setVisible( flag );

  // Handle the case where both modes are disabled
  if ( m_zoomEnabled == false && m_selectEnabled == false )
  {
    // Set the default arrow cursor, depending on what is enabled another cursor will be set
    m_plot->canvas()->setCursor( Qt::ArrowCursor );
    // Disable the zoomers
    if ( m_plot->zoomerLeft() == NULL ) return;
    m_plot->zoomerLeft()->setEnabled( false );
    if ( m_plot->zoomerRight() == NULL ) return;
    m_plot->zoomerRight()->setEnabled( false );
    // Disable the selector
    if ( m_plot->selector() == NULL ) return;
    m_plot->selector()->setEnabled( false );
  }

  // Toggle the appropriate mode (if one of them is enabled)
  zoomTriggered( m_zoomEnabled );
  selectTriggered( m_selectEnabled );
}

bool PlotWidget::isContextMenuEnabled (  )  [inline]

{ return m_contextMenuEnabled; }

bool PlotWidget::isCurveContextMenuEnabled (  )  [inline]

{ return m_curveContextMenuEnabled; }

bool PlotWidget::isCurveSelectionEnabled (  )  [inline]

{ return m_curveSelectionEnabled; }

bool PlotWidget::isCustomOneEnabled (  )  [inline]

{ return m_customOneEnabled; }

bool PlotWidget::isPropertiesEnabled (  )  [inline]

{ return m_propertiesEnabled; }

bool PlotWidget::isSelectEnabled (  )  [inline]

{ return m_selectEnabled; }

bool PlotWidget::isToolBarEnabled (  )  [inline]

{ return m_toolBarEnabled; }

bool PlotWidget::isZoomEnabled (  )  [inline]

{ return m_zoomEnabled; }

Plot* PlotWidget::plot (  )  [inline]

Referenced by Grapher::addCurve(), Grapher::Grapher(), and Grapher::removeCurve().

{ return m_plot; }

QAction* PlotWidget::propertiesAction (  )  [inline]

{ return m_propertiesAction; }

QAction* PlotWidget::selectAction (  )  [inline]

{ return m_selectAction; }

void PlotWidget::setAxisDate ( QwtPlot::Axis  axis,
QDate  baseDate = QDate()
)

{
  //qDebug( "PlotWidget::setAxisNumerical" );

  m_plot->tracker()->enableDateTracker( true );
  m_plot->tracker()->setBaseDate( baseDate );
  m_plot->tracker()->enableDateTimeTracker( false );
  m_plot->setAxisScaleDraw( axis, new PlotDateScale( baseDate ) );
  m_plot->setAxisScaleEngine( axis, new PlotDateScaleEngine() );
}

void PlotWidget::setAxisDateTime ( QwtPlot::Axis  axis,
QDateTime  baseDateTime = QDateTime()
)

Referenced by Grapher::Grapher().

{
  //qDebug( "PlotWidget::setAxisNumerical" );

  m_plot->tracker()->enableDateTimeTracker( true );
  m_plot->tracker()->setBaseDateTime( baseDateTime );
  m_plot->tracker()->enableDateTracker( false );
  m_plot->setAxisScaleDraw( axis, new PlotDateTimeScale( baseDateTime ) );
  m_plot->setAxisScaleEngine( axis, new PlotDateTimeScaleEngine() );
}

void PlotWidget::setAxisLinear ( QwtPlot::Axis  axis  )

{
  //qDebug( "PlotWidget::setAxisNumerical" );

  m_plot->tracker()->enableDateTimeTracker( false );
  m_plot->tracker()->enableDateTracker( false );
  m_plot->setAxisScaleDraw( axis, new QwtScaleDraw() );
  m_plot->setAxisScaleEngine( axis, new QwtLinearScaleEngine() );
}

void PlotWidget::setAxisLogarithmic ( QwtPlot::Axis  axis  )

{
  //qDebug( "PlotWidget::setAxisNumerical" );

  m_plot->tracker()->enableDateTimeTracker( false );
  m_plot->tracker()->enableDateTracker( false );
  m_plot->setAxisScaleDraw( axis, new QwtScaleDraw() );
  m_plot->setAxisScaleEngine( axis, new QwtLog10ScaleEngine() );
}

void PlotWidget::setContextMenu ( QMenu *  menu  )

{
  //qDebug( "PlotWidget::setUserDefinedContextMenu" );

  m_externalContextMenu = menu;
}

void PlotWidget::setToolBarIconSize ( QSize  size  )

{
  //qDebug( "PlotWidget::setToolBarIconSize" );

  m_propertiesToolButton->setIconSize( size );
  m_zoomToolButton->setIconSize( size );
  m_selectToolButton->setIconSize( size );
  m_zoomOutToolButton->setIconSize( size );
  m_zoomOutFullToolButton->setIconSize( size );
  m_customOneToolButton->setIconSize( size );
}

void PlotWidget::showEvent ( QShowEvent *  event  )  [inline, protected]

Reimplemented from QWidget.

                                     {
        //hack to fix the bug of PlotZoomer not working on first use.
        static int i = 0;
        if (i++ == 0) zoomOutFullTriggered(true);
        m_plot->updateLayout();
        m_plot->updateAxes();
        QWidget::showEvent(event);
    }

The documentation for this class was generated from the following files:
Generated on Tue Aug 24 2010 15:58:59 for Smartlet by  doxygen 1.7.1
