PlotZoomer Class Reference

#include <PlotZoomer.h>

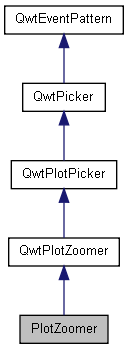

Inheritance diagram for PlotZoomer:
Inheritance graph
[legend]

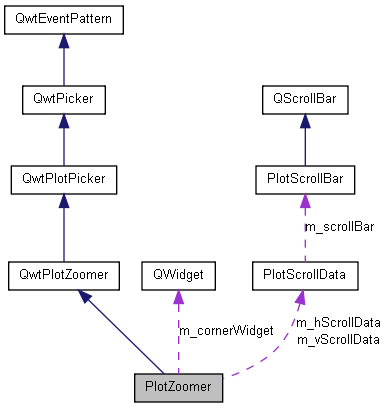

Collaboration diagram for PlotZoomer:
Collaboration graph
[legend]

List of all members.

Public Types

enum  ScrollBarPosition { AttachedToScale, OppositeToScale }

Public Slots

virtual void zoom (const QwtDoubleRect &rect)
virtual void zoom (int offset)
void otherScrollBarMoved (Qt::Orientation o, double min, double max, double minBase, double maxBase)

Signals

void scrollBarMovedSignal (Qt::Orientation o, double min, double max, double minBase, double maxBase)

Public Member Functions

 PlotZoomer (QwtPlotCanvas *canvas, bool doReplot=true)
 PlotZoomer (int xAxis, int yAxis, QwtPlotCanvas *canvas, bool doReplot=true)
 PlotZoomer (int xAxis, int yAxis, int selectionFlags, DisplayMode trackerMode, QwtPlotCanvas *canvas, bool doReplot=true)
virtual ~PlotZoomer ()
PlotScrollBar * horizontalScrollBar () const
PlotScrollBar * verticalScrollBar () const
void setHScrollBarMode (Qt::ScrollBarPolicy)
void setVScrollBarMode (Qt::ScrollBarPolicy)
Qt::ScrollBarPolicy vScrollBarMode () const
Qt::ScrollBarPolicy hScrollBarMode () const
void setHScrollBarPosition (ScrollBarPosition)
void setVScrollBarPosition (ScrollBarPosition)
ScrollBarPosition hScrollBarPosition () const
ScrollBarPosition vScrollBarPosition () const
QWidget * cornerWidget () const
virtual void setCornerWidget (QWidget *)
virtual bool eventFilter (QObject *, QEvent *)
virtual void rescale ()
virtual void updateScrollBars ()

Protected Member Functions

virtual PlotScrollBar * scrollBar (Qt::Orientation)
virtual void layoutScrollBars (const QRect &)
virtual void begin ()
virtual bool end (bool flag=true)

Member Enumeration Documentation

enum PlotZoomer::ScrollBarPosition
Enumerator:
AttachedToScale
OppositeToScale

{ AttachedToScale, OppositeToScale };

Constructor & Destructor Documentation

PlotZoomer::PlotZoomer ( QwtPlotCanvas *  canvas,
bool  doReplot = true
)

  : QwtPlotZoomer( canvas, doReplot )
{
  //qDebug( "PlotZoomer::PlotZoomer" );

  init();
}

PlotZoomer::PlotZoomer ( int  xAxis,
int  yAxis,
QwtPlotCanvas *  canvas,
bool  doReplot = true
)

  : QwtPlotZoomer( xAxis, yAxis, canvas, doReplot )
{
  //qDebug( "PlotZoomer::PlotZoomer" );

  init();
}

PlotZoomer::PlotZoomer ( int  xAxis,
int  yAxis,
int  selectionFlags,
DisplayMode  trackerMode,
QwtPlotCanvas *  canvas,
bool  doReplot = true
)

  : QwtPlotZoomer( xAxis, yAxis, selectionFlags, trackerMode, canvas, doReplot )
{
  //qDebug( "PlotZoomer::PlotZoomer" );

  init();
}

PlotZoomer::~PlotZoomer (  )  [virtual]

{
  //qDebug( "PlotZoomer::~PlotZoomer" );

  delete m_cornerWidget;
  delete m_vScrollData;
  delete m_hScrollData;
}

Member Function Documentation

void PlotZoomer::begin (  )  [protected, virtual]

Reimplemented from QwtPlotZoomer.

{
  //qDebug( "PlotZoomer::begin" );

  // Classical cursor (otherwise the zoom cursor would interfere with the tracker text)
  plot()->canvas()->setCursor( Qt::CrossCursor );

  QwtPlotZoomer::begin();
}

QWidget * PlotZoomer::cornerWidget (  )  const

{
  //qDebug( "PlotZoomer::cornerWidget" );

  return m_cornerWidget;
}

bool PlotZoomer::end ( bool  flag = true  )  [protected, virtual]

Reimplemented from QwtPlotZoomer.

{
  //qDebug( "PlotZoomer::end" );

  // Restore the zoom cursor
  plot()->canvas()->setCursor( QCursor( QPixmap( ":/PhytoLib/icons/Plot/32x32/ZoomCursor.png" ), 7, 7 ) );

  return QwtPlotZoomer::end( flag );
}

bool PlotZoomer::eventFilter ( QObject *  o,
QEvent *  e
) [virtual]

Reimplemented from QwtPicker.

{
  //qDebug( "PlotZoomer::eventFilter" );

  if ( o == canvas() )
  {
    switch( e->type() )
    {
      case QEvent::Resize:
      {
        const int fw = ( ( QwtPlotCanvas* )canvas() )->frameWidth();

        QRect rect;
        rect.setSize( ( ( QResizeEvent* )e )->size() );
        rect.setRect( rect.x() + fw, rect.y() + fw, rect.width() - 2 * fw, rect.height() - 2 * fw );

        layoutScrollBars( rect );
        break;
      }
      case QEvent::ChildRemoved:
      {
        const QObject* child = ( ( QChildEvent* )e )->child();
        if ( child == m_cornerWidget )
          m_cornerWidget = NULL;
        else if ( child == m_hScrollData->m_scrollBar )
          m_hScrollData->m_scrollBar = NULL;
        else if ( child == m_vScrollData->m_scrollBar )
          m_vScrollData->m_scrollBar = NULL;
        break;
      }
      case QEvent::Wheel:
      {
        if ( zoomRectIndex() == 0 )
        {
          setZoomBase( false );
        }
        double multiplier;
        if ( dynamic_cast< QWheelEvent* > ( e )->delta() > 0 )
        {
          // Zoom in a certain amount
          multiplier = 0.2;
        }
        else
        {
          multiplier = -0.2;
        }
        if ( zoomRect() == zoomBase() && multiplier < 0 )
        {
          // If we have a zoomRect which is the same as the zoomBase, then
          // discard everything on the zoomstack and return to the zoomBase
          zoom( 0 );
        }
        else
        {
          double width = zoomRect().right() - zoomRect().left();
          double height = zoomRect().top() - zoomRect().bottom();
          zoom( QwtDoubleRect( zoomRect().left() + multiplier / 2.0 * width,
                               zoomRect().bottom() + multiplier / 2.0 * height,
                               width - multiplier * width,
                               height - multiplier * height ) );
        }
        break;
      }
      default:
        break;
    }
  }
  return QwtPlotZoomer::eventFilter( o, e );
}

PlotScrollBar * PlotZoomer::horizontalScrollBar (  )  const

Referenced by layoutScrollBars(), otherScrollBarMoved(), and updateScrollBars().

{
  //qDebug( "PlotZoomer::horizontalScrollBar" );

  return m_hScrollData->m_scrollBar;
}

Qt::ScrollBarPolicy PlotZoomer::hScrollBarMode (  )  const

Referenced by setHScrollBarMode().

{
  //qDebug( "PlotZoomer::hScrollBarMode" );

  return m_hScrollData->m_mode;
}

PlotZoomer::ScrollBarPosition PlotZoomer::hScrollBarPosition (  )  const

Referenced by layoutScrollBars(), and updateScrollBars().

{
  //qDebug( "PlotZoomer::hScrollBarPosition" );

  return m_hScrollData->m_position;
}

void PlotZoomer::layoutScrollBars ( const QRect &  rect  )  [protected, virtual]

Referenced by eventFilter(), and updateScrollBars().

{
  //qDebug( "PlotZoomer::layoutScrollBars" );

  int hPos = xAxis();
  if ( hScrollBarPosition() == OppositeToScale )
    hPos = oppositeAxis( hPos );

  int vPos = yAxis();
  if ( vScrollBarPosition() == OppositeToScale )
    vPos = oppositeAxis( vPos );

  PlotScrollBar *hScrollBar = horizontalScrollBar();
  PlotScrollBar *vScrollBar = verticalScrollBar();

  const int hdim = hScrollBar ? hScrollBar->extent() : 0;
  const int vdim = vScrollBar ? vScrollBar->extent() : 0;

  if ( hScrollBar && hScrollBar->isVisible() )
  {
    int x = rect.x();
    int y = ( hPos == QwtPlot::xTop ) ? rect.top() : rect.bottom() - hdim + 1;
    int w = rect.width();

    if ( vScrollBar && vScrollBar->isVisible() )
    {
      if ( vPos == QwtPlot::yLeft )
        x += vdim;
      w -= vdim;
    }

    hScrollBar->setGeometry( x, y, w, hdim );
  }
  if ( vScrollBar && vScrollBar->isVisible() )
  {
    int pos = yAxis();
    if ( vScrollBarPosition() == OppositeToScale )
      pos = oppositeAxis( pos );

    int x = ( vPos == QwtPlot::yLeft ) ? rect.left() : rect.right() - vdim + 1;
    int y = rect.y();

    int h = rect.height();

    if ( hScrollBar && hScrollBar->isVisible() )
    {
      if ( hPos == QwtPlot::xTop )
        y += hdim;

      h -= hdim;
    }

    vScrollBar->setGeometry( x, y, vdim, h );
  }
  if ( hScrollBar && hScrollBar->isVisible() && vScrollBar
      && vScrollBar->isVisible() )
  {
    if ( m_cornerWidget )
    {
      QRect cornerRect( vScrollBar->pos().x(), hScrollBar->pos().y(), vdim,
                        hdim );
      m_cornerWidget->setGeometry( cornerRect );
    }
  }
}

void PlotZoomer::otherScrollBarMoved ( Qt::Orientation  o,
double  min,
double  max,
double  minBase,
double  maxBase
) [slot]

{
  //qDebug( "PlotZoomer::otherScrollBarMoved" );

  // This function syncs the scrollbar movement of this zoomer with the scrollbar movement
  // of a zoomer attached to the opposite axis
  // TODO: unfortunately the sync is not perfect due to some rounding errors somewhere along the way

  if ( maxBase == minBase ) return;

  double thisMinBase = 0.0;
  double thisMaxBase = 0.0;
  if ( o == Qt::Horizontal )
  {
    thisMinBase = horizontalScrollBar()->minBaseValue();
    thisMaxBase = horizontalScrollBar()->maxBaseValue();
  }
  else
  {
    thisMinBase = verticalScrollBar()->minBaseValue();
    thisMaxBase = verticalScrollBar()->maxBaseValue();
  }

  double slope = ( thisMaxBase - thisMinBase ) / ( maxBase - minBase );

  double thisMin = slope * ( min - minBase ) + thisMinBase;
  double thisMax = slope * ( max - minBase ) + thisMinBase;

  scrollBarMoved( o, thisMin, thisMax );
}

void PlotZoomer::rescale (  )  [virtual]

Reimplemented from QwtPlotZoomer.

{
  //qDebug( "PlotZoomer::rescale" );

  QwtScaleWidget *xScale = plot()->axisWidget( xAxis() );
  QwtScaleWidget *yScale = plot()->axisWidget( yAxis() );

  if ( zoomRectIndex() <= 0 )
  {
    if ( m_inZoom )
    {
      xScale->setMinBorderDist( 0, 0 );
      yScale->setMinBorderDist( 0, 0 );
      m_inZoom = false;
    }
  }
  else
  {
    if ( !m_inZoom )
    {
      /*
       We set a minimum border distance.
       Otherwise the canvas size changes when scrolling,
       between situations where the major ticks are at
       the canvas borders (requiring extra space for the label)
       and situations where all labels can be painted below/top
       or left/right of the canvas.
       */
      int start, end;

      xScale->getBorderDistHint( start, end );
      xScale->setMinBorderDist( start, end );

      yScale->getBorderDistHint( start, end );
      yScale->setMinBorderDist( start, end );

      m_inZoom = false;
    }
  }

  QwtPlotZoomer::rescale();
  updateScrollBars();
}

PlotScrollBar * PlotZoomer::scrollBar ( Qt::Orientation  o  )  [protected, virtual]

Referenced by updateScrollBars().

{
  //qDebug( "PlotZoomer::scrollBar" );

  PlotScrollBar* &sb = ( o == Qt::Vertical ) ? m_vScrollData->m_scrollBar : m_hScrollData->m_scrollBar;

  if ( sb == NULL )
  {
    sb = new PlotScrollBar( o, canvas() );
    sb->hide();
    connect( sb,
             SIGNAL( valueChanged( Qt::Orientation, double, double ) ),
             SLOT( scrollBarMoved( Qt::Orientation, double, double ) ) );
  }
  return sb;
}

void PlotZoomer::scrollBarMovedSignal ( Qt::Orientation  o,
double  min,
double  max,
double  minBase,
double  maxBase
) [signal]

Referenced by zoom().

void PlotZoomer::setCornerWidget ( QWidget *  w  )  [virtual]

{
  //qDebug( "PlotZoomer::setCornerWidget" );

  if ( w != m_cornerWidget )
  {
    if ( canvas() )
    {
      delete m_cornerWidget;
      m_cornerWidget = w;
      if ( m_cornerWidget->parent() != canvas() )
      {
        m_cornerWidget->setParent( canvas() );
      }

      updateScrollBars();
    }
  }
}

void PlotZoomer::setHScrollBarMode ( Qt::ScrollBarPolicy  mode  )

{
  //qDebug( "PlotZoomer::setHScrollBarMode" );

  if ( hScrollBarMode() != mode )
  {
    m_hScrollData->m_mode = mode;
    updateScrollBars();
  }
}

void PlotZoomer::setHScrollBarPosition ( ScrollBarPosition  pos  )

Referenced by Plot::Plot().

{
  //qDebug( "PlotZoomer::setHScrollBarPosition" );

  if ( m_hScrollData->m_position != pos )
  {
    m_hScrollData->m_position = pos;
    updateScrollBars();
  }
}

void PlotZoomer::setVScrollBarMode ( Qt::ScrollBarPolicy  mode  )

{
  //qDebug( "PlotZoomer::setVScrollBarMode" );

  if ( vScrollBarMode() != mode )
  {
    m_vScrollData->m_mode = mode;
    updateScrollBars();
  }
}

void PlotZoomer::setVScrollBarPosition ( ScrollBarPosition  pos  )

Referenced by Plot::Plot().

{
  //qDebug( "PlotZoomer::setVScrollBarPosition" );

  if ( m_vScrollData->m_position != pos )
  {
    m_vScrollData->m_position = pos;
    updateScrollBars();
  }
}

void PlotZoomer::updateScrollBars (  )  [virtual]

Referenced by rescale(), Plot::resizeEvent(), setCornerWidget(), setHScrollBarMode(), setHScrollBarPosition(), setVScrollBarMode(), and setVScrollBarPosition().

{
  //qDebug( "PlotZoomer::updateScrollBars" );

  if ( !canvas() )
    return;

  const int xAxis = QwtPlotZoomer::xAxis();
  const int yAxis = QwtPlotZoomer::yAxis();

  int xScrollBarAxis = xAxis;
  if ( hScrollBarPosition() == OppositeToScale )
    xScrollBarAxis = oppositeAxis( xScrollBarAxis );

  int yScrollBarAxis = yAxis;
  if ( vScrollBarPosition() == OppositeToScale )
    yScrollBarAxis = oppositeAxis( yScrollBarAxis );

  QwtPlotLayout *layout = plot()->plotLayout();

  bool showHScrollBar = needScrollBar( Qt::Horizontal );
  if ( showHScrollBar )
  {
    PlotScrollBar *sb = scrollBar( Qt::Horizontal );

    sb->setPalette( plot()->palette() );

    const QwtScaleEngine* se = plot()->axisScaleEngine( xAxis );
    sb->setInverted( se->testAttribute( QwtScaleEngine::Inverted ) );

    sb->setBase( zoomBase().left(), zoomBase().right() );
    sb->moveSlider( zoomRect().left(), zoomRect().right() );

    if ( !sb->isVisibleTo( canvas() ) )
    {
      sb->show();
      layout->setCanvasMargin( layout->canvasMargin( xScrollBarAxis )
                               + sb->extent(), xScrollBarAxis );
    }
  }
  else
  {
    if ( horizontalScrollBar() )
    {
      horizontalScrollBar()->hide();
      layout->setCanvasMargin( layout->canvasMargin( xScrollBarAxis )
                               - horizontalScrollBar()->extent(), xScrollBarAxis );
    }
  }

  bool showVScrollBar = needScrollBar( Qt::Vertical );
  if ( showVScrollBar )
  {
    PlotScrollBar *sb = scrollBar( Qt::Vertical );

    sb->setPalette( plot()->palette() );

    const QwtScaleEngine *se = plot()->axisScaleEngine( xAxis );
    sb->setInverted( !( se->testAttribute( QwtScaleEngine::Inverted ) ) );

    sb->setBase( zoomBase().top(), zoomBase().bottom() );
    sb->moveSlider( zoomRect().top(), zoomRect().bottom() );

    if ( !sb->isVisibleTo( canvas() ) )
    {
      sb->show();
      layout->setCanvasMargin( layout->canvasMargin( yScrollBarAxis )
                               + sb->extent(), yScrollBarAxis );
    }
  }
  else
  {
    if ( verticalScrollBar() )
    {
      verticalScrollBar()->hide();
      layout->setCanvasMargin( layout->canvasMargin( yScrollBarAxis )
                               - verticalScrollBar()->extent(), yScrollBarAxis );
    }
  }

  if ( showHScrollBar && showVScrollBar )
  {
    if ( m_cornerWidget == NULL )
    {
      m_cornerWidget = new QWidget( canvas() );
      m_cornerWidget->setAutoFillBackground( true );
      m_cornerWidget->setPalette( plot()->palette() );
    }
    m_cornerWidget->show();
  }
  else
  {
    if ( m_cornerWidget )
      m_cornerWidget->hide();
  }

  layoutScrollBars( ( ( QwtPlotCanvas* )canvas() )->contentsRect() );
  plot()->updateLayout();
}

PlotScrollBar * PlotZoomer::verticalScrollBar (  )  const

Referenced by layoutScrollBars(), otherScrollBarMoved(), updateScrollBars(), and zoom().

{
  //qDebug( "PlotZoomer::verticalScrollBar" );

  return m_vScrollData->m_scrollBar;
}

Qt::ScrollBarPolicy PlotZoomer::vScrollBarMode (  )  const

Referenced by setVScrollBarMode().

{
  //qDebug( "PlotZoomer::vScrollBarMode" );

  return m_vScrollData->m_mode;
}

PlotZoomer::ScrollBarPosition PlotZoomer::vScrollBarPosition (  )  const

Referenced by layoutScrollBars(), and updateScrollBars().

{
  //qDebug( "PlotZoomer::vScrollBarPosition" );

  return m_vScrollData->m_position;
}

void PlotZoomer::zoom ( int  offset  )  [virtual, slot]

Reimplemented from QwtPlotZoomer.

{
  //qDebug( "PlotZoomer::zoom( int )" );

  if ( zoomRectIndex() == 0 )
  {
    storeAxesStates();
  }

  QwtPlotZoomer::zoom( offset );

  if ( zoomRectIndex() == 0 )
  {
    restoreAxesStates();
  }

  // This signal is emitted to sync another zoomer attached to the opposite axis
  if ( verticalScrollBar() != NULL )
  {
    emit scrollBarMovedSignal( Qt::Vertical,
                               verticalScrollBar()->minSliderValue(), verticalScrollBar()->maxSliderValue(),
                               verticalScrollBar()->minBaseValue(), verticalScrollBar()->maxBaseValue() );
  }

  QTimer::singleShot(0, plot(), SLOT(replot()));
}

void PlotZoomer::zoom ( const QwtDoubleRect &  rect  )  [virtual, slot]

Reimplemented from QwtPlotZoomer.

Referenced by eventFilter(), and zoom().

{
  //qDebug( "PlotZoomer::zoom( QwtDoubleRect )" );

  if ( zoomRectIndex() == 0 )
  {
    storeAxesStates();
  }

  QwtPlotZoomer::zoom( rect );

  if ( zoomRectIndex() == 0 )
  {
    restoreAxesStates();
  }

  // This signal is emitted to sync another zoomer attached to the opposite axis
  if ( verticalScrollBar() != NULL )
  {
    emit scrollBarMovedSignal( Qt::Vertical,
                               verticalScrollBar()->minSliderValue(), verticalScrollBar()->maxSliderValue(),
                               verticalScrollBar()->minBaseValue(), verticalScrollBar()->maxBaseValue() );
  }

  QTimer::singleShot(0, plot(), SLOT(replot()));
}

The documentation for this class was generated from the following files:
Generated on Tue Aug 24 2010 15:58:59 for Smartlet by  doxygen 1.7.1
