PlotSelector Class Reference

#include <PlotSelector.h>

Inheritance diagram for PlotSelector:

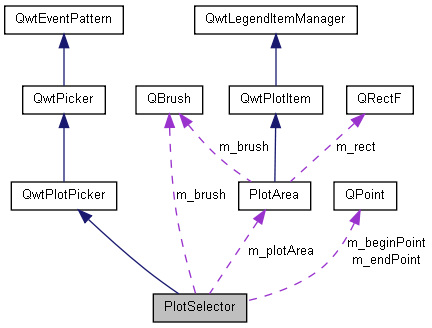

Collaboration diagram for PlotSelector:

List of all members.

Public Types
enum	Type { Rect, XInterval, YInterval }
Public Member Functions
	PlotSelector (QwtPlotCanvas *canvas)
virtual	~PlotSelector ()
void	setType (Type type)
Type	type () const
void	setSelectionBrush (QBrush brush)
QBrush	selectionBrush () const
void	removeSelection ()
QRectF	rect () const
double	xIntervalLowerBound () const
double	xIntervalUpperBound () const
double	yIntervalLowerBound () const
double	yIntervalUpperBound () const
bool	eventFilter (QObject *object, QEvent *event)

---

Member Enumeration Documentation

enum PlotSelector::Type

Enumerator:

Rect
XInterval
YInterval

{ Rect, XInterval, YInterval };

---

Constructor & Destructor Documentation

PlotSelector::PlotSelector

(

QwtPlotCanvas *

canvas

)

  : QwtPlotPicker( canvas )
{
  //qDebug( "PlotSelector::PlotSelector" );

  setSelectionFlags( PointSelection | DragSelection );
  setRubberBand( RectRubberBand );
  setTrackerMode( AlwaysOff );

  m_type = XInterval;
  m_brush = QBrush( QColor( 255, 0, 0, 128 ) );
  m_beginPoint = QPoint();
  m_endPoint = QPoint();
  m_buttonPressed = false;
  m_plotArea = new PlotArea;
  m_plotArea->setTitle( QwtText( "SelectorPlotArea" ) );
  if ( plot() != NULL )
  {
    m_plotArea->attach( plot() );
  }
}

PlotSelector::~PlotSelector

(

)

[virtual]

{
  //qDebug( "PlotSelector::~PlotSelector" );
}

---

Member Function Documentation

bool PlotSelector::eventFilter	(	QObject *	object,
		QEvent *	event
	)

Reimplemented from QwtPicker.

{
  //qDebug( "PlotSelector::eventFilter" );

  if ( object == canvas() )
  {
    switch ( event->type() )
    {
      case QEvent::MouseButtonPress:
      {
        m_buttonPressed = true;
        m_plotArea->setVisible( true );

        m_beginPoint = trackerPosition();
        if ( m_type == PlotSelector::Rect )
        {
          double xPos = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          double yPos = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          m_plotArea->setRect( xPos, yPos, xPos, yPos );
        }
        else if ( m_type == PlotSelector::XInterval )
        {
          double xPos = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          m_plotArea->setXInterval( xPos, xPos );
        }
        else if ( m_type == PlotSelector::YInterval )
        {
          double yPos = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          m_plotArea->setYInterval( yPos, yPos );
        }
        QTimer::singleShot(0, plot(), SLOT(replot()));
        break;
      }
      case QEvent::MouseButtonRelease:
      {
        m_buttonPressed = false;
        m_endPoint = trackerPosition();

        if ( m_type == PlotSelector::Rect )
        {
          double xBegin = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          double yBegin = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          double xEnd = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_endPoint.x() );
          double yEnd = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_endPoint.y() );
          m_plotArea->setRect( xBegin, yBegin, xEnd, yEnd );
        }
        else if ( m_type == PlotSelector::XInterval )
        {
          double xBegin = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          double xEnd = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_endPoint.x() );
          m_plotArea->setXInterval( xBegin, xEnd );
        }
        else if ( m_type == PlotSelector::YInterval )
        {
          double yBegin = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          double yEnd = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_endPoint.y() );
          m_plotArea->setYInterval( yBegin, yEnd );
        }

        QTimer::singleShot(0, plot(), SLOT(replot()));
        break;
      }
      case QEvent::MouseMove:
      {
        if ( m_buttonPressed == false ) break;

        QPoint position = trackerPosition();

        if ( m_type == PlotSelector::Rect )
        {
          double xBegin = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          double yBegin = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          double xPos = plot()->canvasMap( QwtPlot::xBottom ).invTransform( position.x() );
          double yPos = plot()->canvasMap( QwtPlot::yLeft ).invTransform( position.y() );
          m_plotArea->setRect( xBegin, yBegin, xPos, yPos );
        }
        else if ( m_type == PlotSelector::XInterval )
        {
          double xBegin = plot()->canvasMap( QwtPlot::xBottom ).invTransform( m_beginPoint.x() );
          double xPos = plot()->canvasMap( QwtPlot::xBottom ).invTransform( position.x() );
          m_plotArea->setXInterval( xBegin, xPos );
        }
        else if ( m_type == PlotSelector::YInterval )
        {
          double yBegin = plot()->canvasMap( QwtPlot::yLeft ).invTransform( m_beginPoint.y() );
          double yPos = plot()->canvasMap( QwtPlot::yLeft ).invTransform( position.y() );
          m_plotArea->setYInterval( yBegin, yPos );
        }

        QTimer::singleShot(0, plot(), SLOT(replot()));
        break;
      }
      default:
        break;
    }
  }

  return QwtPlotPicker::eventFilter( object, event );
}

QRectF PlotSelector::rect

(

)

const [inline]

{ return m_plotArea->rect(); }

void PlotSelector::removeSelection

(

)

{
  //qDebug( "PlotSelector::removeSelection" );

  m_plotArea->setVisible( false );
  QTimer::singleShot(0, plot(), SLOT(replot()));
}

QBrush PlotSelector::selectionBrush

(

)

const [inline]

{ return m_plotArea->brush(); }

void PlotSelector::setSelectionBrush

(

QBrush

brush

)

[inline]

{ m_plotArea->setBrush( brush ); }

void PlotSelector::setType

(

Type

type

)

[inline]

{ m_type = type; }

Type PlotSelector::type

(

)

const [inline]

{ return m_type; }

double PlotSelector::xIntervalLowerBound

(

)

const [inline]

{ return m_plotArea->xIntervalLowerBound(); }

double PlotSelector::xIntervalUpperBound

(

)

const [inline]

{ return m_plotArea->xIntervalUpperBound(); }

double PlotSelector::yIntervalLowerBound

(

)

const [inline]

{ return m_plotArea->yIntervalLowerBound(); }

double PlotSelector::yIntervalUpperBound

(

)

const [inline]

{ return m_plotArea->yIntervalUpperBound(); }

---

The documentation for this class was generated from the following files:

• PlotSelector.h
• PlotSelector.cpp
