An expandable container with a QComboBox-style API. More...

#include <kexpandablegroupbox.h>

Inheritance diagram for KExpandableGroupBox:

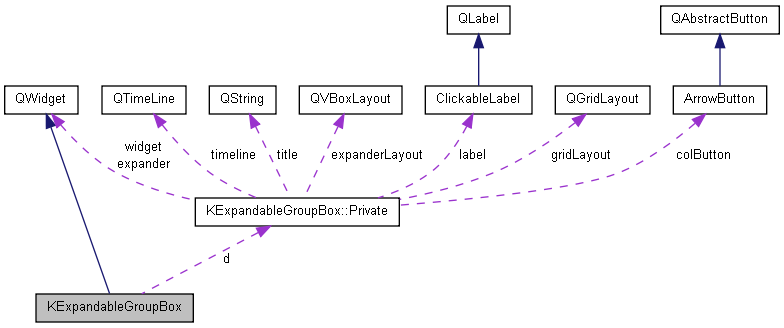

Collaboration diagram for KExpandableGroupBox:

[legend]

Classes
class	Private
Public Slots
void	setExpanded (bool expanded)
void	setTitle (const QString &title)
Public Member Functions
	KExpandableGroupBox (QWidget *parent=0)
	KExpandableGroupBox (const QString &title, QWidget *parent=0)
	~KExpandableGroupBox ()
QString	title () const
bool	isExpanded () const
Qt::Alignment	alignment () const
QWidget *	widget () const
void	setWidget (QWidget *w)
void	setAlignment (Qt::Alignment a)
void	setAnimateExpansion (bool animate)
bool	animateExpansion () const
QSize	minimumSizeHint () const
Protected Member Functions
void	mouseReleaseEvent (QMouseEvent *ev)
void	paintEvent (QPaintEvent *)
Properties
bool	expanded
QString	title
Qt::Alignment	alignment
bool	animateExpansion

Detailed Description

An expandable container with a QComboBox-style API.

A KExpandableGroupBox provides a title label with space that you can store arbitrary widgets in, very much like a group box. However, unlike a group box, the contents is hidden by default and can be expanded by a click on the title or the folding indicator (+/-).

This class should be used within a QScrollArea, because the widget takes up more screen estate when unfolded and might otherwise enlarge your dialog beyond the physical screen size.

Example code:

 QCheckBox *cb1 = new QCheckBox(tr("Option 1"));
 QCheckBox *cb2 = new QCheckBox(tr("Option 2"));
 QCheckBox *cb3 = new QCheckBox(tr("Option 3"));

 QWidget *widget = new QWidget;
 QVBoxLayout *vbox = new QVBoxLayout(widget);
 vbox->addWidget(cb1);
 vbox->addWidget(cb2);
 vbox->addWidget(cb3);

 KExpandableGroupBox *expWidget = new KExpandableGroupBox();
 expWidget->setTitle(tr("Less Important Options"));
 expWidget->setWidget(widget);

 QScrollArea *area = new QScrollArea;
 area->setWindowTitle("Collapsible Widget Demo");
 area->setWidgetResizable(true);

 QWidget *containerWidget = new QWidget
 QVBoxLayout *lay = new QVBoxLayout(containerWidget);
 lay->addWidget(collapsibleWidget);

Author:: Daniel Molkentin <molkentin@kde.org>

Constructor & Destructor Documentation

KExpandableGroupBox::KExpandableGroupBox ( QWidget * parent = 0 ) [explicit]

Default constructor.

Parameters:

parent

is the parent widget

Use setTitle() and setWidget() to set the respective properties.

 : QWidget(parent), d(new KExpandableGroupBox::Private)
{
    init();
}

KExpandableGroupBox::KExpandableGroupBox	(	const QString &	title,
		QWidget *	parent = `0`
	)			`[explicit]`

Convinience constructor.

Parameters:

	title	is the title of the collaspsible widget
	parent	is the widget parent widget

Use setWidget() to set the widgets contents.

 : QWidget(parent), d(new KExpandableGroupBox::Private)
{
    init();
    setTitle(title);
}

KExpandableGroupBox::~KExpandableGroupBox ( )

{
    delete d;
}

Member Function Documentation

Qt::Alignment KExpandableGroupBox::alignment ( ) const

Returns:: the alignment of the title label

See also:: setAlignment()

bool KExpandableGroupBox::animateExpansion ( ) const

Returns:: wether or not the expansion of widget() should be animated. The default is true except on embedded platforms.

See also:: setAnimateExpansion()

bool KExpandableGroupBox::isExpanded ( ) const

Returns:: widgets wether the widget is expanded or not

See also:: setExpanded()

Referenced by mouseReleaseEvent(), and setWidget().

{
    return d->colButton->isChecked();
}

QSize KExpandableGroupBox::minimumSizeHint ( ) const

{
//    return QSize(0,16);
        return QWidget::minimumSizeHint();
}

void KExpandableGroupBox::mouseReleaseEvent ( QMouseEvent * ev ) [protected]

Reimplemented from QWidget.

{
#if 0
    if ( (ev->button() & Qt::LeftButton) && QRect(0, 0, width(), 16).contains(ev->pos())) {
        setExpanded(!isExpanded());
    }
#endif
    QWidget::mouseReleaseEvent(ev);
}

void KExpandableGroupBox::paintEvent ( QPaintEvent * ev ) [protected]

Reimplemented from QWidget.

{
#if 0
    QPainter p(this);
    QStyleOption opt;
    int h = 16; //px
        opt.rect = QRect(0, 0, h, h);
    opt.palette = palette();
    opt.state = QStyle::State_Children;
    if (d->colButton->isChecked())
        opt.state |= QStyle::State_Open;
    style()->drawPrimitive(QStyle::PE_IndicatorBranch, &opt, &p);
    p.drawText(h, 0, width(), height(), Qt::TextShowMnemonic, d->title);
    p.end();
#endif
    QWidget::paintEvent(ev);
}

void KExpandableGroupBox::setAlignment ( Qt::Alignment a )

Sets the alignment of the title label.

See also:: alignment()

{
    d->label->setAlignment(a);
}

void KExpandableGroupBox::setAnimateExpansion ( bool animate )

Sets wether or not the expansion of widget() should be animated.

See also:: animateExpansion()

{
    d->animateExpansion = animate;
}

void KExpandableGroupBox::setExpanded ( bool expanded ) [slot]

Sets wether the widgets contents is expanded or not

See also:: isExpanded()

Referenced by mouseReleaseEvent(), and setWidget().

{
    if ( !d->widget ) {
        return;
    }

    if (!d->animateExpansion) {
        if ( !expanded )
            d->widget->setVisible( false );
    } else {
        if ( expanded )
            d->expander->setVisible( true );
        d->widget->setVisible( expanded );
    }

    d->colButton->setChecked( expanded );
    d->timeline->setDirection( expanded ? QTimeLine::Forward
                                        : QTimeLine::Backward );
    d->timeline->start();
}

void KExpandableGroupBox::setTitle ( const QString & title ) [slot]

Sets the collapsible widgets title

See also:: title()

Referenced by KExpandableGroupBox().

{
    //d->label->setText(QString("<b>%1</b>").arg(title));
    d->label->setText(title);
    d->title = title;
}

void KExpandableGroupBox::setWidget ( QWidget * w )

Sets the inner widgets.

See also:: widget()

Referenced by Seeker::Seeker().

{
    if (!w) {
        return;
    }

    d->widget = w;
    d->label->setBuddy(d->widget);

    if (!d->animateExpansion) {
        if ( !isExpanded() ) {
            d->widget->hide();
        }
        d->gridLayout->addWidget( d->widget, 2, 2 );
        d->gridLayout->setRowStretch( 2, 1 );
    } else {
        if ( !d->expander ) {
            d->expander = new QWidget( this );
            d->gridLayout->addWidget( d->expander, 2, 2 );
            d->gridLayout->setRowStretch( 2, 1 );
            d->expanderLayout = new QVBoxLayout( d->expander );
            d->expanderLayout->setMargin( 0 );
            d->expanderLayout->setSpacing( 0 );
            d->expander->setFixedHeight( 0 );
        }

        d->widget->setParent(d->expander);
        d->widget->show();
        d->expanderLayout->addWidget(d->widget);
    }
    setEnabled( true );

    if ( isExpanded() ) {
        setExpanded( true );
    }
}

QString KExpandableGroupBox::title ( ) const

Returns:: the widgets title

QWidget * KExpandableGroupBox::widget ( ) const

Returns:: the widget contained

See also:: setWidget()

Reimplemented in Seeker.

{
    return d->widget;
}

Property Documentation

Qt::Alignment KExpandableGroupBox::alignment [read, write]

bool KExpandableGroupBox::animateExpansion [read, write]

bool KExpandableGroupBox::expanded [read, write]

QString KExpandableGroupBox::title [read, write]
