FileUploadWizard Class Reference

Wizard for uploading the files to the database. More...

#include <fileuploadwizard.h>

Inheritance diagram for FileUploadWizard:

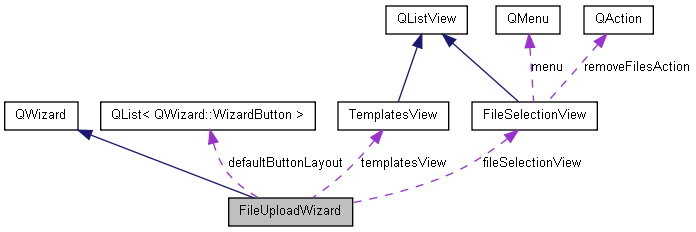

Collaboration diagram for FileUploadWizard:

List of all members.

Public Types
enum	Page {   Page_Intro, Page_FileSelection, Page_TemplateSelection, Page_TemplateMaker,   Page_Preview, Page_Conclusion }
Public Member Functions
	FileUploadWizard (QWidget *parent=0)
	~FileUploadWizard ()
void	setDefaultButtonLayout ()
QList< QWizard::WizardButton >	getDefaultLayout ()
FileSelectionView *	getFileSelectionView ()
TemplatesView *	getTemplateView ()

---

Detailed Description

Wizard for uploading the files to the database.

The wizard consists of 6 pages:

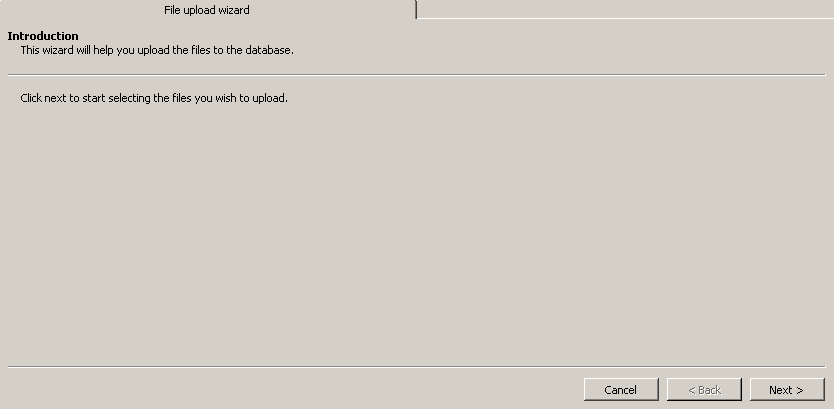

• Upon starting the wizard the introduction page is displayed.

• After pressing the "next" button you get the file selection page. It allows you to select the files you wish to upload.

• After selecting the files and pressing the "next" button the template selection page is displayed. Here you have two options: either you select one template from the list and go to the preview page by pressing the "next" button or you chose to make a new template by pressing the "new template" and go to the template maker page.

• The template maker page will allow you to make a new template based on a specific file type. After saving the template you will get back to the template selection page. Chose it and hit the "next" button to go to the preview page.

• The preview page lets you preview your files according to the template definition. If all data in each file is displayed properly, you can hit the "update" button which will start the uploading process.

• Once uploading is finished the conclusion page is displayed. It gives an overview of the uploaded files. Files which for some reason were not uploaded are displayed in red.

Note:

To be able to upload to the database you must have the privilege to do so. You can check this with the ProjectEditor.

Todo:

For some unknown reason the FileUploadWizard is very slow on page change, especially when a file is leaded in TemplateMakerPage and you are redirected to TemplateSelectionPage. This should be checked.

---

Member Enumeration Documentation

enum FileUploadWizard::Page

Enumerator:

Page_Intro
Page_FileSelection
Page_TemplateSelection
Page_TemplateMaker
Page_Preview
Page_Conclusion

              {
        Page_Intro, Page_FileSelection, Page_TemplateSelection, Page_TemplateMaker,
        Page_Preview, Page_Conclusion
    };

---

Constructor & Destructor Documentation

FileUploadWizard::FileUploadWizard

(

QWidget *

parent = 0

)

                                                         : QWizard(parent)
{
    setObjectName("FileUploadWizard");
    setWindowTitle("File upload wizard");
    setWizardStyle(QWizard::ClassicStyle);

    // Object initialization
    fileSelectionView = new FileSelectionView;
    fileSelectionView->setModel(new FileSelectionModel(fileSelectionView));
    templatesView = new TemplatesView;
    templatesView->setModel(new TemplatesModel(templatesView));

    defaultButtonLayout << QWizard::Stretch << QWizard::CancelButton << QWizard::BackButton
                        << QWizard::NextButton << QWizard::FinishButton;

    // Page creation
    // Note: geen enkele page hier mag QWizardPage::wizard() aanroepen in zijn
    // constructor want de QWizard::setPage() is nog niet executed, dus de
    // wizard() waartoe de page behoort is nog niet bekend! Het nodige daarom via
    // constructor arguments meegeven.
    setPage(Page_Intro, new IntroPage(this));
    setPage(Page_FileSelection, new FileSelectionPage(this));
    setPage(Page_TemplateSelection, new TemplateSelectionPage(this));
    setPage(Page_TemplateMaker, new TemplateMakerPage(fileSelectionView->model(), this));
    setPage(Page_Preview, new PreviewPage(fileSelectionView->model(), this));
    setPage(Page_Conclusion, new ConclusionPage(this));

#ifdef DEBUG_SETSTARTUPPAGE
    setStartId(FileImportWizard::Page_TemplateMaker);
#endif //DEBUG_SETSTARTUPPAGE

    setDefaultButtonLayout();
}

FileUploadWizard::~FileUploadWizard

(

)

{
    delete fileSelectionView; //want "this" is er niet de parent van
    delete templatesView;
    //qDebug() << "FileImportWizard destructed...";
}

---

Member Function Documentation

QList< QWizard::WizardButton > FileUploadWizard::getDefaultLayout

(

)

{
    return defaultButtonLayout;
}

FileSelectionView * FileUploadWizard::getFileSelectionView

(

)

{
    return fileSelectionView;
}

TemplatesView * FileUploadWizard::getTemplateView

(

)

Referenced by PreviewPage::setVisible().

{
    return templatesView;
}

void FileUploadWizard::setDefaultButtonLayout

(

)

Referenced by FileUploadWizard(), and PreviewPage::setVisible().

{
    setButtonLayout(defaultButtonLayout);
}

---

The documentation for this class was generated from the following files:

• fileuploadwizard.h
• fileuploadwizard.cpp
