The main database object used throughout the program. More...

#include <Database.h>

Inheritance diagram for Database:

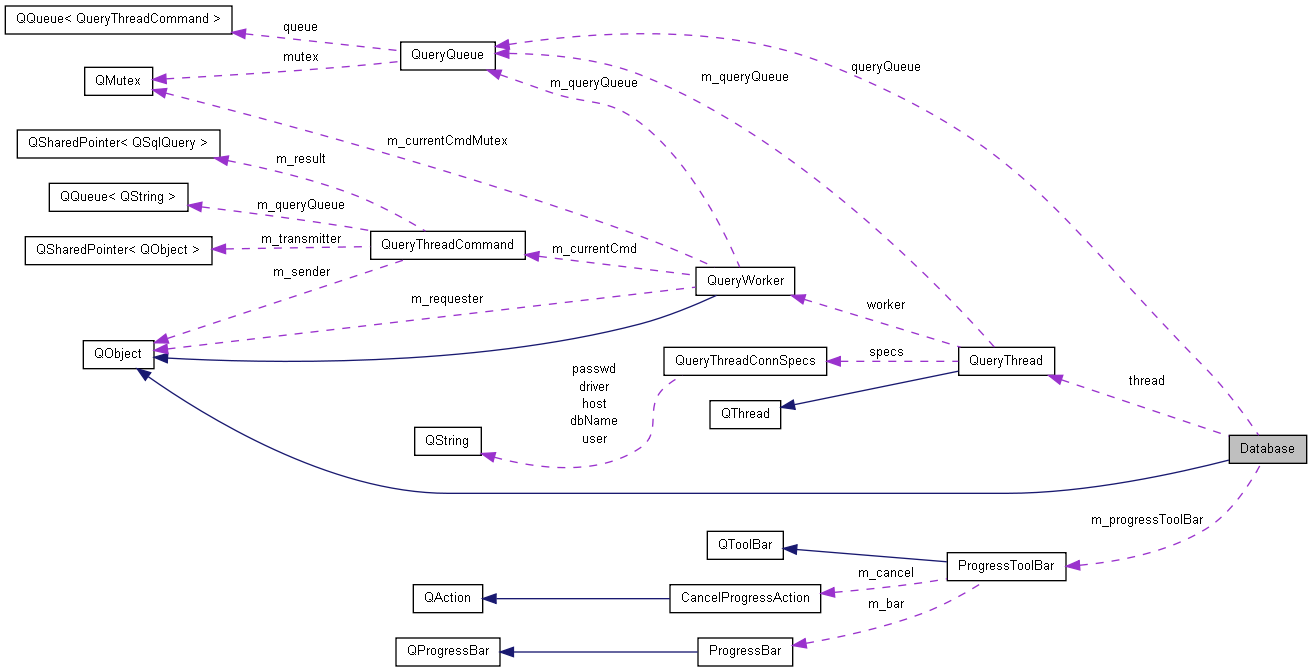

Collaboration diagram for Database:

[legend]

Public Slots
void	slot_queryThreadResult (QueryThreadCommand result)
void	pipe_queryResult (QSqlQuery *)
Signals
void	signal_queryQueue_changed (QueryQueue *queue)
void	tableChanged (const QString &tableName)
Public Member Functions
void	execThreaded (const QString &query, const QObject *sender)
void	execThreaded (const QueryThreadCommand &cmd)
Static Public Member Functions
static Database *	instance ()
static QSqlDatabase	staticCon ()
static QSqlQuery	execStatic (const QString &query=QString())
static QSqlRecord	execStaticR (const QString &query)
static ProgressToolBar *	progressToolBar ()
static bool	execPending (const QObject *sender)
static QSqlIndex	lastInserted (const QString &tableName)
static void	listenForTableChange (const QString &tableName)
static void	notifyTableChange (const QString &tableName)
Protected Slots
void	onDriverNotification (const QString &name)
Protected Member Functions
	Database ()
	Database (const QString &driver, const QString &dbName, const QString &host, const QString &user, const QString &passwd, int port)
	~Database ()

Detailed Description

The main database object used throughout the program.

A cross-application notification system is implemented with NOTIFY. It could possibly be extended with a more generic database-centralized system.

Constructor & Destructor Documentation

Database::Database ( ) [protected]

{
    ConnectionDialog d;
    if (d.exec() != QDialog::Accepted)
        // temporary
        threadSetup("QPSQL", "smartlet" , "pleco10.ugent.be", "smartlet", "hent", 5432);
    else
        threadSetup(d.driverName(), d.databaseName(), d.hostName(),
                    d.userName(), d.password(), d.port());

};

Database::Database	(	const QString &	driver,
		const QString &	dbName,
		const QString &	host,
		const QString &	user,
		const QString &	passwd,
		int	port
	)			`[protected]`

{
    threadSetup(driver, dbName, host, user, passwd, port);
}

Database::~Database ( ) [protected]

                   {
    qDebug() << "Stopping Database thread...";
    thread->quit();
    if (thread->wait(10000))
        qDebug() << "Thread stopped successfully";
    else
        qDebug() << "Thread terminated by force";
};

Member Function Documentation

bool Database::execPending ( const QObject * sender ) [static]

This function should be (is?) treadsafe as it first checks the queue from which the threads take data, and then check the executing thread(s).

{
    return Database::instance()->queryQueue.contains(QueryThreadCommand(const_cast<QObject*>(sender))) ||
            Database::instance()->thread->currentCmd().sender() == sender;
}

QSqlQuery Database::execStatic ( const QString & query = QString() ) [static]

Executes the query in the same thread the application is running.

Todo:: Max execution time? And an isSuccessfull by reference bool, to check whether all went well.

Currently, there is no limit set on the duration of execution. This could be a problem in case of bad connection or connection drops. A solution to this problem could be a threaded execetution with a time limit. A possible implementation to start with is described here. Problem is that is such cases we would need to open a third connection because such connection could not be used in Database::staticCon() which is used in many models. A better approach would then probably be to use the existing QueryThread and implement some priority mechanism or similar? Check here for statement_timeout. This could be set dynamicaly each time on MainConnection, or it could be set once for max of 5 sec or similar. This should best be tested.

Referenced by BaseQueryModel::BaseQueryModel(), ProjectTreeModel::data(), execStaticR(), FilesUploadedModel::FilesUploadedModel(), notifyTableChange(), SensorUnitEditor::onAddButtonPress(), SqlDataStrategy::reconfigure(), ProjectTreeModel::removeRows(), CalibrationsModel::reQuery(), SensorUnitEditor::SensorUnitEditor(), ConvertableUnitModel::setConstraint(), SensorChannelModel::setConstraint(), SensorChannelCalibrationsView::setConstraint(), ProjectTreeModel::setData(), SqlUnitConvertor::SqlUnitConvertor(), TemplatesModel::TemplatesModel(), ConvertableUnitModel::unconstrain(), SensorChannelModel::unconstrain(), and UnitConversionEditor::UnitConversionEditor().

{
    if (query.isNull() || query.isEmpty()) return QSqlQuery();
    if (staticCon().isOpenError() || !staticCon().isOpen()){
        qDebug() << "Static connection to database not open: can not execute query.";
        return QSqlQuery();
    }
    //qDebug() << query;
    static QSqlQuery q(staticCon());
    if (q.exec(query)) return q;
    else {
        qWarning() << "Error from statically executed query: " << q.lastError().text()
                << "\nfrom query: " << query;
        return q;
    }
}

QSqlRecord Database::execStaticR ( const QString & query ) [static]

Exectues a SELECT query and expects zero or one record to be returned.

This is mainly a convenience function for queries which fetch certain data from the database.

Referenced by lastInserted(), ProjectCalibrationEditor::onNewButtonPress(), SensorChannelCalibrationEditor::SensorChannelCalibrationEditor(), and MappedBaseEditor::setTable().

{
    QSqlQuery q = execStatic(query);

    // sanity checks
    if (!q.isActive() || !q.isSelect()) {
        if (!staticCon().isOpenError() && staticCon().isOpen())
            qDebug() << "Query \"" << query << "\"  retuned activestate: " << q.isActive() << " and selectstate: " <<  q.isSelect();
        return QSqlRecord();
    }

    if (!(q.size() <= 1)){
        qDebug() << "Query " << query << " returned " << q.size() << " rows where it only must return 0 or 1.";
        Q_ASSERT(false);
    }

    if (q.size() == 0)
        return QSqlRecord();

    if (!q.next()) //position on valid record;
        return QSqlRecord();

    Q_ASSERT(q.isValid()); // true if the query is currently positioned on a valid record

    // record ready and valid for return
    return q.record();
}

void Database::execThreaded	(	const QString &	query,
		const QObject *	sender
	)

Referenced by DatabaseAuditLogView::updateModel().

{
    // setup command
    QueryThreadCommand cmd(sender, query);
    execThreaded(cmd);
}

void Database::execThreaded ( const QueryThreadCommand & cmd )

{
    Q_ASSERT(cmd.isValid());
    // Check whether sender can receive the result: it needs an implementation
    // of slot pipe_queryResult(QSqlQuery&)
    if (cmd.sender()->metaObject()->indexOfSlot("pipe_queryResult(QSqlQuery*)") == -1) {
        qWarning() << cmd.sender()->objectName() << " requested a threaded execution of query but has no pipe to fetch the result";
        return;
    }

    // put command in queue
    QueryQueue *queue = &queryQueue;
    queue->enqueue(cmd);

    // cancel any query currently in execution from m_sender
    cancelQuery(cmd.sender());

    // signal that queue has changed
    emit signal_queryQueue_changed(queue);
}

Database * Database::instance ( ) [static]

Referenced by execPending(), progressToolBar(), ProjectTreeModel::ProjectTreeModel(), SqlQueryModel::SqlQueryModel(), SqlTableModel::SqlTableModel(), staticCon(), and DatabaseAuditLogView::updateModel().

{
    static Database db;
    return &db;
};

QSqlIndex Database::lastInserted ( const QString & tableName ) [static]

Referenced by MappedBaseEditor::onSubmitButtonPress().

{
    QSqlRecord result = Database::execStaticR("SELECT * FROM fnc_get_last_inserted_seq_id('" + tableName + "'::regclass)");

    if (result.isEmpty() || result.isNull("column_name") || result.isNull("seq_number")) return QSqlIndex();

    QSqlField field(result.value("column_name").toString(), QVariant::Int);

    QSqlIndex index;
    index.append(field);
    index.setValue(0, result.value("seq_number"));

    qDebug() << "returning last inserted id: " << index << " for table " << tableName;

    return index;
}

void Database::listenForTableChange ( const QString & tableName ) [static]

Sets the database driver to listen for table change notifications. If such change occurs, Database::tableChanged() is emitted.

See also:: Database::tableChanged(); GlobalConst::DB_TABLE_CHANGE_NOTIFY()

Referenced by SqlHelper::setDependency().

{
    if ((Database::staticCon().tables(QSql::AllTables).filter(QRegExp(".*" + tableName)).count() < 1) && (Database::staticCon().isOpen())){
        qWarning() << "Trying to listen for table changes on " << tableName << ", but the table doesn't exist.";
    }

    // Setup notification
    // Once made, this notification is never unsubscribed because it is
    // unknown how many SqlTableModels there are based on the same table.
    QString notificationName(GlobalConst::DB_TABLE_CHANGE_NOTIFY.arg(tableName));
    if (!Database::staticCon().driver()->subscribedToNotifications().contains(notificationName))
        Database::staticCon().driver()->subscribeToNotification(notificationName);
}

void Database::notifyTableChange ( const QString & tableName ) [static]

This function is called by application objects to inform the Database and other concurrent applications that the application is finished changing/adjusting the table.

Referenced by MappedBaseEditor::onDeleteButtonPress(), TableBaseEditor::onSubmitButtonPress(), MappedBaseEditor::onSubmitButtonPress(), and ProjectTreeModel::setData().

{
    QString notifyCmd("NOTIFY \"" + GlobalConst::DB_TABLE_CHANGE_NOTIFY.arg(tableName) + "\""); // " is mandatory because of Qt's specific LISTEN driver implementation
    qDebug() << notifyCmd << " executed.";
    execStatic(notifyCmd);
}

void Database::onDriverNotification ( const QString & name ) [protected, slot]

{
    qDebug() << name << QString(name).remove(GlobalConst::DB_TABLE_CHANGE_NOTIFY.arg(""));
    if (name.contains(GlobalConst::DB_TABLE_CHANGE_NOTIFY.arg(""))){
        QString tableName = QString(name).remove(GlobalConst::DB_TABLE_CHANGE_NOTIFY.arg(""));
        emit tableChanged(tableName);
    }
}

void Database::pipe_queryResult ( QSqlQuery * ) [slot]

{
    Q_ASSERT_X(false, "Database", "unimplemented function Database::pipe_queryResult()");
}

ProgressToolBar * Database::progressToolBar ( ) [static]

Referenced by main().

{
    return Database::instance()->m_progressToolBar;
}

void Database::signal_queryQueue_changed ( QueryQueue * queue ) [signal]

Referenced by execThreaded().

void Database::slot_queryThreadResult ( QueryThreadCommand result ) [slot]

{
    // Best would be to pass through the QSharedPointer<QSqlQuery> because the source might be deleted!
    QMetaObject::invokeMethod(const_cast<QObject*>(result.sender()), "pipe_queryResult", Qt::DirectConnection, Q_ARG(QSqlQuery*, result.result()));
}

QSqlDatabase Database::staticCon ( ) [static]

Referenced by MappedBaseEditor::addWidget(), DatabaseAuditLogView::DatabaseAuditLogView(), execStatic(), execStaticR(), listenForTableChange(), MappedBaseEditor::MappedBaseEditor(), PrivilegeEditor::PrivilegeEditor(), SqlQueryModel::reQuery(), TableBaseEditor::TableBaseEditor(), and TableEditor::TableEditor().

{
    if (QSqlDatabase::connectionNames().isEmpty()) Database::instance(); //Moet, want Database kan anders nog niet geinitializeerd zijn.
    QSqlDatabase db = QSqlDatabase::database("MainConnection", false);
    Q_ASSERT(db.isValid());
    if (db.isOpenError() || !db.isOpen())
        return QSqlDatabase();
    else
        return db;
}

void Database::tableChanged ( const QString & tableName ) [signal]

Referenced by onDriverNotification().

The documentation for this class was generated from the following files:
