Header section for data used in BuilderView. More...

#include <builderview.h>

Inheritance diagram for DataHeaderSection:

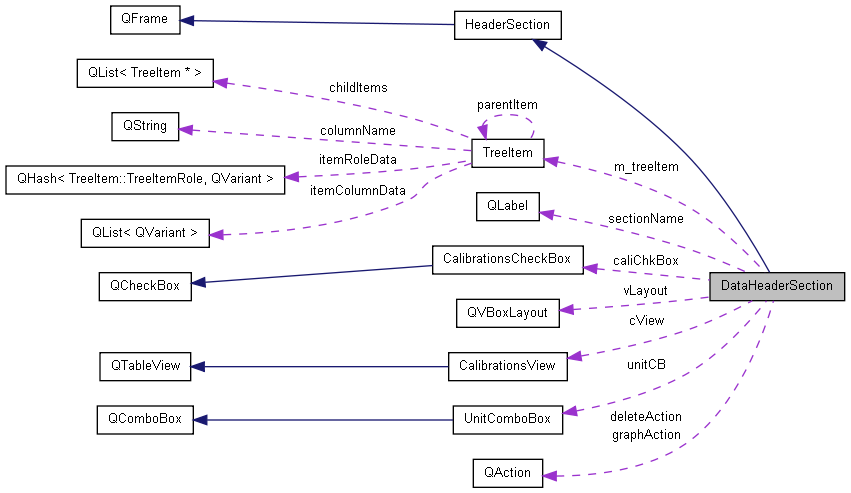

Collaboration diagram for DataHeaderSection:

[legend]

Public Slots
void	slot_updateTitle ()
void	slot_caliChkBoxCheckEnable ()
void	onCalibrationSelectionChange ()
Signals
void	signal_removalRequested ()
void	signal_curve_setEnabled (bool)
Public Member Functions
	DataHeaderSection (TreeItem treeItem, QWidget parent=0)
	~DataHeaderSection ()
CalibrationsCheckBox *	calibrationsCheckBox ()
QString	getName ()
virtual QVariant	data (int role) const
QString	getSqlForColumn ()
int	getTreeId ()
QString	getTitle ()
DataHeaderViewPort *	parentHeader ()
int	logicalIndex ()
Protected Member Functions
bool	eventFilter (QObject object, QEvent event)

Detailed Description

Header section for data used in BuilderView.

Calibrations

View

The calibration window shows up when you hover over the "Calibrations?" checkbox. It consists of two columns: the timestamp and the calibration formula. "RAW" references the raw data.

Calibration formulas are classified in tree types, based on the selected time range.

Green: All calibrations within the global time range.
Yellow: All calibrations except the last before the first timestamp in the times cope.
Red: All calibrations after the time range.

Computation mechanism

The selected calibration closest to the data timestamp is used for computation. If there is data before any calibration, the closest (i.e. oldest selected) calibration is used in computation.

Todo:: Implement extra data-manipulation options or data statistics.

Constructor & Destructor Documentation

DataHeaderSection::DataHeaderSection	(	TreeItem *	treeItem,
		QWidget *	parent = `0`
	)

                                                                                   :
        HeaderSection(parent)
{
    qRegisterMetaType<Qt::CheckState>("Qt::CheckState"); //to use it with queued (!) signals & slots
    setObjectName("DataHeaderSection");
    m_treeItem = treeItem;
    sectionName = new QLabel(this);
    int tree_id = treeItem->data(TreeItem::TreeItemId).toInt();
    Q_ASSERT(tree_id != -1);
    Q_ASSERT(tree_id != 0);

    this->installEventFilter(this);

    cView = new CalibrationsView(tree_id, this);
    cView->setWindowFlags(Qt::ToolTip);
    cView->setFrameStyle(QFrame::Box | QFrame::Panel);
    cView->installEventFilter(this);

    caliChkBox = new CalibrationsCheckBox("Calibrations?", this);
    slot_caliChkBoxCheckEnable();
    caliChkBox->installEventFilter(this);

    unitCB = new UnitComboBox(new ConvertableUnitModel(this), this);
    unitCB->setTreeIdConstraint(tree_id, false, false);

    connect(caliChkBox, SIGNAL(stateChanged(int)),
            cView->model(), SLOT(slot_allCalibrations_toggle(int)));
    connect(cView->model(), SIGNAL(signal_calibrationSelections_changed(Qt::CheckState)),
            caliChkBox, SLOT(slot_setCheckState(Qt::CheckState)));
    connect(cView->model(), SIGNAL(signal_calibrationSelections_changed(Qt::CheckState)),
            this, SLOT(onCalibrationSelectionChange()));
    connect(cView->model(), SIGNAL(signal_calibrationSelections_changed(Qt::CheckState)),
            this, SIGNAL(signal_userSetting_changed()), Qt::QueuedConnection);
    connect(cView->model(), SIGNAL(modelReset()),
            this, SLOT(slot_caliChkBoxCheckEnable()));
    connect(unitCB, SIGNAL(currentIndexChanged(int)),
            this, SIGNAL(signal_userSetting_changed()), Qt::QueuedConnection);

    deleteAction = new QAction("Delete", this);
    connect(deleteAction, SIGNAL(triggered()), this, SLOT(deleteLater()));

    graphAction = new QAction("Graph", this);
    graphAction->setCheckable(true);
    connect(graphAction, SIGNAL(triggered(bool)), this, SIGNAL(signal_curve_setEnabled(bool)));

    QToolBar *toolBar = new QToolBar("Actions", this);
    toolBar->setSizePolicy(QSizePolicy::Minimum, QSizePolicy::Minimum);
    toolBar->addAction(graphAction);
    toolBar->addAction(deleteAction); //Always put as last: it shows as last.

    QHBoxLayout *middleLayout = new QHBoxLayout;
    middleLayout->addWidget(sectionName, 1);
    middleLayout->addWidget(unitCB);

    vLayout = new QVBoxLayout(this);
    vLayout->addWidget(toolBar, 0, Qt::AlignRight);
    vLayout->addLayout(middleLayout);
    vLayout->addWidget(caliChkBox);
    setLayout(vLayout);

    setToolTip(m_treeItem->data(TreeItem::TreeItemFullName).toString());
    // Title update must be called after the construction finishes,
    // and the item is DataHeaderSection is added to the headder.
    // If we call it during construction, the DataHeader cannot form the name.
    QTimer::singleShot(0, this, SLOT(slot_updateTitle()));
}

DataHeaderSection::~DataHeaderSection ( )

{
    emit signal_curve_setEnabled(false); //make sure no corresponding curve stays over.
}

Member Function Documentation

CalibrationsCheckBox * DataHeaderSection::calibrationsCheckBox ( )

{
    return caliChkBox;
}

QVariant DataHeaderSection::data ( int role ) const [virtual]

Reimplemented from HeaderSection.

Referenced by DataHeader::data().

{
    if (role == GlobalEnum::BuilderHeaderDataUnitSymbolRole)
        return unitCB->currentText();
    else
        return QVariant();
}

bool DataHeaderSection::eventFilter	(	QObject *	object,
		QEvent *	event
	)			`[protected]`

{
    if (object == caliChkBox && event->type() == QEvent::Enter){
        // Getting builderView: goes beyond the modular nature of objects. It's probably better to
        // implement something similar with signals/slots?
        BuilderView *builderView = dynamic_cast<BuilderView*>(parent()->parent()->parent()->parent()->parent());
        Q_ASSERT(builderView);

        // Calculate cordinates of the calibrationsView
        QPoint topLeft = builderView->dataView()->mapToGlobal(QPoint(0,0));
        QPoint top = this->mapToGlobal(QPoint(0, this->height()-1)); //-1, otherwise one pixel remains in between!
        QSize size = builderView->dataView()->size();
        size.setHeight(size.height() + (topLeft.y() - top.y()) - 1); //-1, only one pixel remains of the bottom of the view
        QRect r(QPoint(topLeft.x(), top.y()), size);

        // Show calibrationsView
        cView->setGeometry(r);
        cView->show();
    }

    if ((object == this || object == cView) && event->type() == QEvent::Leave){
        QRect thisGeo = this->geometry();
        QPoint globalPoint = this->parentWidget()->mapToGlobal(thisGeo.topLeft());
        thisGeo.moveTopLeft(globalPoint);

        if (thisGeo.contains(QCursor::pos(), false) || cView->geometry().contains(QCursor::pos(), false))
            return HeaderSection::eventFilter(object, event);

        cView->hide();
    }

    return HeaderSection::eventFilter(object, event);
}

QString DataHeaderSection::getName ( )

Referenced by DataHeaderViewPort::getHeaderNames(), and DataHeaderViewPort::getSql().

{
    return sectionName->text();
}

QString DataHeaderSection::getSqlForColumn ( )

Referenced by DataHeaderViewPort::getSql().

{
    // Initialize
    int tree_id = m_treeItem->data(TreeItem::TreeItemId).toInt();
    QString sql = TREE_ID_COLUMN.arg(QString::number(tree_id));
    QString selectedCalibrationIds = cView->model()->getSelectedCalibrationIds().join(",");

    // Calibrate if necessary
    if (selectedCalibrationIds != QString())
        sql = CALIBRATION_FUNCTION.arg(sql, selectedCalibrationIds, QString::number(tree_id));

    // Convert unit if necessary
    Q_ASSERT(unitCB->model()->isUnitFromConstrained());
    Q_ASSERT(unitCB->model()->currentConstraintUnitId().toInt() == unitCB->currentUnitFromId());
    if (unitCB->currentUnitToId() != unitCB->model()->currentConstraintUnitId())
        sql = UNITCONVERT_FUNCTION.arg(sql, QString::number(unitCB->currentUnitFromId()), QString::number(unitCB->currentUnitToId()));

    return sql;
}

QString DataHeaderSection::getTitle ( )

Referenced by slot_updateTitle().

{
    QVector<DataHeaderSection*> sections = parentHeader()->sections(getTreeId());
    QString name = m_treeItem->data(TreeItem::TreeItemName).toString();
    Q_ASSERT(sections.count() != 0);
    if (sections.count() == 1) return name;
    else return name.append("_(%1)").arg(QString::number(sections.indexOf(this)));
}

int DataHeaderSection::getTreeId ( )

Referenced by DataHeaderViewPort::getSql(), getTitle(), and DataHeaderViewPort::sections().

{
    return m_treeItem->data(TreeItem::TreeItemId).toInt();
}

int DataHeaderSection::logicalIndex ( )

{
    return parentHeader()->logicalIndex(this);
}

void DataHeaderSection::onCalibrationSelectionChange ( ) [slot]

Referenced by DataHeaderSection().

{
    Q_ASSERT(m_treeItem);
    unitCB->setTreeIdConstraint(m_treeItem->data(TreeItem::TreeItemId).toInt(), false, false, cView->model()->isAnyItemChecked());
}

DataHeaderViewPort * DataHeaderSection::parentHeader ( )

Referenced by getTitle(), and logicalIndex().

{
    Q_ASSERT(dynamic_cast<DataHeaderViewPort*>(parent()));
    return dynamic_cast<DataHeaderViewPort*>(parent());
}

void DataHeaderSection::signal_curve_setEnabled ( bool ) [signal]

Referenced by DataHeaderSection(), and ~DataHeaderSection().

void DataHeaderSection::signal_removalRequested ( ) [signal]

void DataHeaderSection::slot_caliChkBoxCheckEnable ( ) [slot]

Referenced by DataHeaderSection().

{
    caliChkBox->setEnabled(!cView->model()->rowCount() == 0);
}

void DataHeaderSection::slot_updateTitle ( ) [slot]

Referenced by DataHeaderSection().

{
    sectionName->setText(getTitle());
}

The documentation for this class was generated from the following files:
