BaseEditor Class Reference

Base editor class. More...

#include <baseeditor.h>

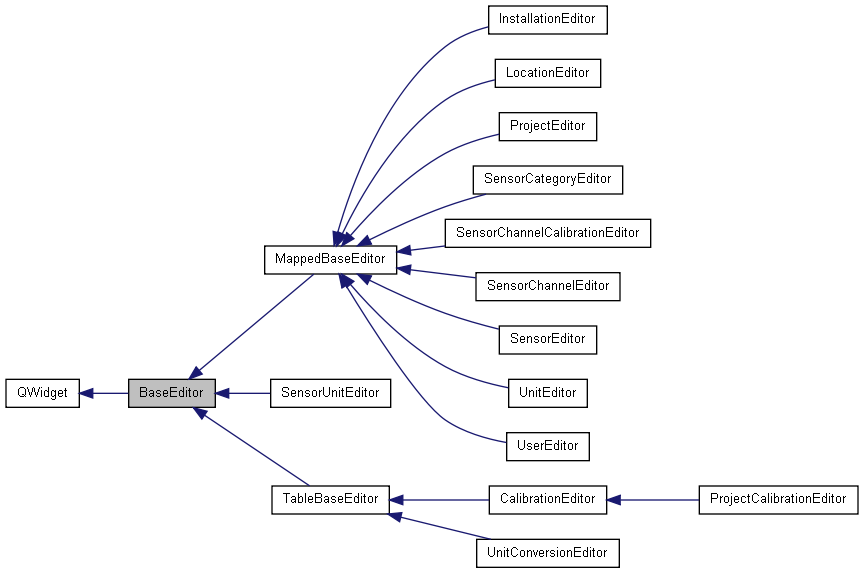

Inheritance diagram for BaseEditor:

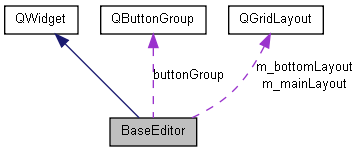

Collaboration diagram for BaseEditor:

List of all members.

Public Types
enum	Buttons {   ButtonNext, ButtonPrevious, ButtonNew, ButtonDelete,   ButtonUndo, ButtonSubmit, ButtonClose, ButtonAdd }
Signals
void	closeRequested ()
Public Member Functions
	BaseEditor (QWidget *parent=0)
QAbstractButton *	button (const Buttons &button)
virtual bool	isDirty () const =0
Protected Slots
virtual void	updateButtons ()=0
void	onCloseButtonPress ()
virtual void	onNewButtonPress ()=0
virtual void	onSubmitButtonPress ()=0
virtual void	onUndoButtonPress ()=0
Protected Member Functions
QGridLayout *	mainLayout () const
QGridLayout *	bottomLayout () const

---

Detailed Description

Base editor class.

It is mainly used to prevent code bloat.

This bug report points to an apparent bug. I experienced this only once, after the creation of the application interface in the database. The reason remained unknown.

Todo:

Empty fields are saved into database as empty strings, not NULL values. Is this desirable, and if not, how should it be solved? With triggers or similar, or through the application?

---

Member Enumeration Documentation

enum BaseEditor::Buttons

Enumerator:

ButtonNext
ButtonPrevious
ButtonNew
ButtonDelete
ButtonUndo
ButtonSubmit
ButtonClose
ButtonAdd

                 {
        ButtonNext,
        ButtonPrevious,
        ButtonNew,
        ButtonDelete,
        ButtonUndo,
        ButtonSubmit,
        ButtonClose,
        ButtonAdd
    };

---

Constructor & Destructor Documentation

BaseEditor::BaseEditor

(

QWidget *

parent = 0

)

                                                : QWidget(parent)
{
    // member initialization
    m_mainLayout = new QGridLayout(this);
    setLayout(m_mainLayout);

    // bottom layout setup
    m_bottomLayout = new QGridLayout();
    QLabel *mandatory = new QLabel("* fields are mandatory",this);
    m_bottomLayout->addWidget(mandatory, 0, 0, 1, 1);

    // main layout setup
    mainLayout()->addLayout(m_bottomLayout, 2, 0, 1, 1);
}

---

Member Function Documentation

QGridLayout * BaseEditor::bottomLayout

(

)

const [protected]

Referenced by SensorChannelCalibrationEditor::SensorChannelCalibrationEditor().

{
    Q_ASSERT(m_bottomLayout);
    return m_bottomLayout;
}

QAbstractButton * BaseEditor::button

(

const Buttons &

button

)

Referenced by MappedBaseEditor::MappedBaseEditor(), SensorUnitEditor::SensorUnitEditor(), TableBaseEditor::TableBaseEditor(), TableBaseEditor::updateButtons(), and MappedBaseEditor::updateButtons().

{
    // lazy initialization
    QAbstractButton *b;
    while (!(b = buttonGroup.button(button))) {
        switch (button) {
        case BaseEditor::ButtonClose: buttonGroup.addButton(new QPushButton(tr("&Close"), this), button); buttonConnect(buttonGroup.button(button), SLOT(onCloseButtonPress())); break;
        case BaseEditor::ButtonUndo: buttonGroup.addButton(new QPushButton(tr("&Undo"), this), button); buttonConnect(buttonGroup.button(button), SLOT(onUndoButtonPress())); break;
        case BaseEditor::ButtonSubmit: buttonGroup.addButton(new QPushButton(tr("&Submit"), this), button); buttonConnect(buttonGroup.button(button), SLOT(onSubmitButtonPress())); break;
        case BaseEditor::ButtonNew: buttonGroup.addButton(new QPushButton(tr("&New"), this), button); buttonConnect(buttonGroup.button(button), SLOT(onNewButtonPress())); break;
        case BaseEditor::ButtonNext: buttonGroup.addButton(new QPushButton(tr("N&ext"), this), button); break;
        case BaseEditor::ButtonPrevious: buttonGroup.addButton(new QPushButton(tr("&Previous"), this), button); break;
        case BaseEditor::ButtonDelete: buttonGroup.addButton(new QPushButton(tr("&Delete"), this), button); break;
        case BaseEditor::ButtonAdd: buttonGroup.addButton(new QPushButton("Add", this), button); break;
        }
        Q_ASSERT(buttonGroup.button(button));
    }
    Q_ASSERT(b);
    return b;
}

void BaseEditor::closeRequested

(

)

[signal]

Referenced by onCloseButtonPress().

virtual bool BaseEditor::isDirty

(

)

const [pure virtual]

Implemented in MappedBaseEditor, TableBaseEditor, and SensorUnitEditor.

QGridLayout * BaseEditor::mainLayout

(

)

const [protected]

Referenced by BaseEditor(), MappedBaseEditor::MappedBaseEditor(), ProjectCalibrationEditor::ProjectCalibrationEditor(), SensorUnitEditor::SensorUnitEditor(), TableBaseEditor::TableBaseEditor(), and UnitConversionEditor::UnitConversionEditor().

{
    Q_ASSERT(m_mainLayout);
    return m_mainLayout;
}

void BaseEditor::onCloseButtonPress

(

)

[protected, slot]

Referenced by button().

{
    close();
    emit closeRequested();
}

virtual void BaseEditor::onNewButtonPress

(

)

[protected, pure virtual, slot]

Implemented in MappedBaseEditor, TableBaseEditor, ProjectCalibrationEditor, SensorChannelCalibrationEditor, SensorChannelEditor, and SensorUnitEditor.

Referenced by button().

virtual void BaseEditor::onSubmitButtonPress

(

)

[protected, pure virtual, slot]

Implemented in MappedBaseEditor, TableBaseEditor, and SensorUnitEditor.

Referenced by button().

virtual void BaseEditor::onUndoButtonPress

(

)

[protected, pure virtual, slot]

Implemented in MappedBaseEditor, TableBaseEditor, and SensorUnitEditor.

Referenced by button().

virtual void BaseEditor::updateButtons

(

)

[protected, pure virtual, slot]

Implemented in MappedBaseEditor, TableBaseEditor, ProjectCalibrationEditor, SensorChannelEditor, SensorEditor, and SensorUnitEditor.

---

The documentation for this class was generated from the following files:

• baseeditor.h
• baseeditor.cpp
